Product Details
Place of Origin: CHINA
Brand Name: Halstec
Certification: ISO9001
Model Number: GMT Pallet
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD8-20 /Pallet
Packaging Details: Nude in the container
Delivery Time: 30 days after advanced payment
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Name: |
GMT Pallet |
Application: |
To Transfer Cement Blocks |
Warranty: |
3 Years |
Size: |
Suitable For Block Machine |
Thickness: |
10-50mm |
Materail: |
Fiberglass + Pp |
Shape: |
Rectangle |
Brand: |
Halstec |
Name: |
GMT Pallet |
Application: |
To Transfer Cement Blocks |
Warranty: |
3 Years |
Size: |
Suitable For Block Machine |
Thickness: |
10-50mm |
Materail: |
Fiberglass + Pp |
Shape: |
Rectangle |
Brand: |
Halstec |

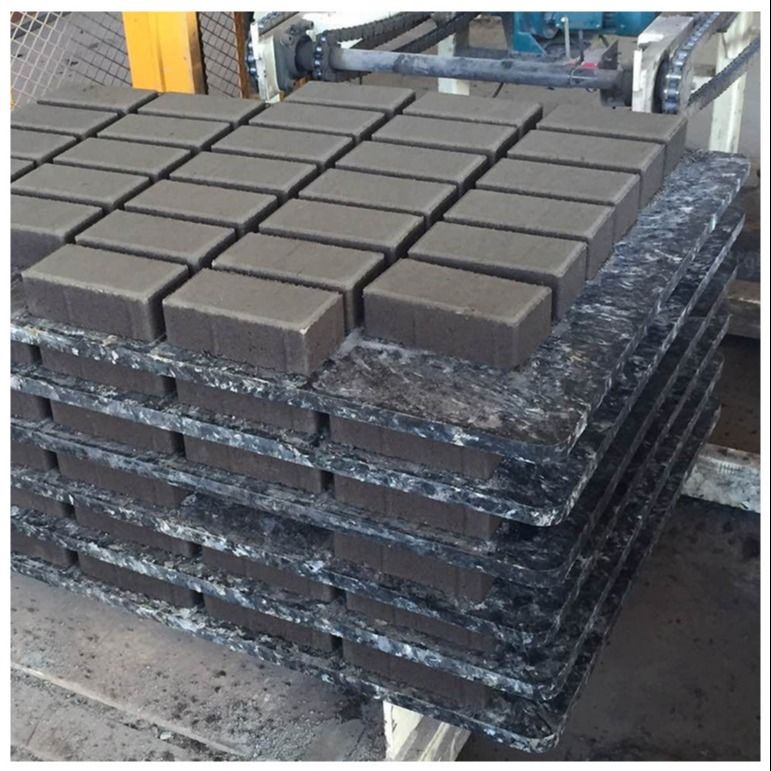

GMT(Glass Mat reinforced Thermoplastics), or glass fiber mat reinforced thermoplastic composite material, which is made of fiber as reinforcing material and thermoplastic resin as base material made by method of heating and pressurizing. It becomes widely used composite material in the world and is considered as one of the most prospective development new material in the 21st century. Till now, the GMT pallets are widely used in cement block manufacturing industry.
GMT Glass Fiber Pallets come with below features:
1.Light weight
Taking one pallet size 850*680 for example, with same thickness, our GMT pallet is lighter; for same weight, our GMT pallet is thinner. GMT pallet is lightest with high strength.
2.High Impact Resistant
Impact strength of PVC plate is less than or equal to 15KJ/m2, GMT pallet is greater than or equal to 30KJ/m2, comparing the impact strength under the same conditions.
Drop hammer experiment in the same height shows that: when GMT pallet slightly cracked, PVC plate has been breakdown by drop hammer. ( Below is the laboratory drop tester: )
3.Good Rigidity
GMT plate elastic modulus 2.0-4.0GPa, PVC sheets elastic modulus 2.0-2.9GPa. The following diagram: GMT plate bending effect compared with the PVC plate under the same stress conditions
4.Not Easily Deformed
5.Waterproof: Water absorption rate <1%
6.Wear-resisting
Surface hardness shore: 76D. 100 minutes vibration with materials and pressure. Brick machine screw off, pallet is not destructed, surface wear is about 0.5mm.
7.Anti-high And Low Temperature
Being used at min 20 degrees, GMT pallet won't deform or crack. GMT pallet is able to withstand high temperature of 60-90℃, won't easily deform, and suitable for steam curing, but PVC plate is easy to deform at high temperature of 60 degree
8.Long Service Life: Theoretically, it can be used more than 8 years
The PP Glass fiber Brick Pallet made from the new type of PP Glass fiber aerospace material, is produced by our company under the cooperation with Chinese Academy of Sciences Qingdao Institute of Materials Technology and Engineering. The scientific design and advanced molding technology has made our PP Glass fiber Brick Pallet performing outstanding characteristics. It effectively solves the problems caused by some other material pallets, like the rust and heavy problems of steel, warping and brittle problems of plastics, and crack and abrasive wear problems of woods and bamboos.
| Item | Specification |
| Material | GMT Glass Fiber +PP |
| Type | pallets for block machine |
| Bending Strength | more than 60N/mm^2 |
| Flexural Modulus | more than 4.5*10^3Mpa |
| Impact Strength | more than 60KJ/m^2 |
| Temperrater tolerance | 80-100 degree centigrade |
| Thickness | 10-50 mm At customer's request |
| Length and Width | Follow the block machine requirements |
Support and Service :
Our technical support and service for the Cement Block Machine product include:
Packaging and Shipping for Cement Block Machine:
Cement block machines are packaged in secure wooden crates or boxes and shipped by freight or air. The crates or boxes are designed to protect the machine from damage during transit. The machines are also secured with straps or rope to prevent any movement. The shipping company will provide tracking numbers so that the customer can follow the progress of the shipment.
