Technical Parameters:
| Function |
To Further Crush Raw Materials Into Particle Size Of ≤ 2mm |
| Customized |
Customized |
| Feature |
Easy Operation |
| Power |
30+30kw |
| Material |
High-quality Steel |
| Capacity |
≥100 M³/hr |
| Brick Type |
Red Clay Bricks, Porous Bricks, Hollow Brick, Etc. |
| Model |
SGC900×900 |
| Automatic Grade |
Automatic |
Product Description:

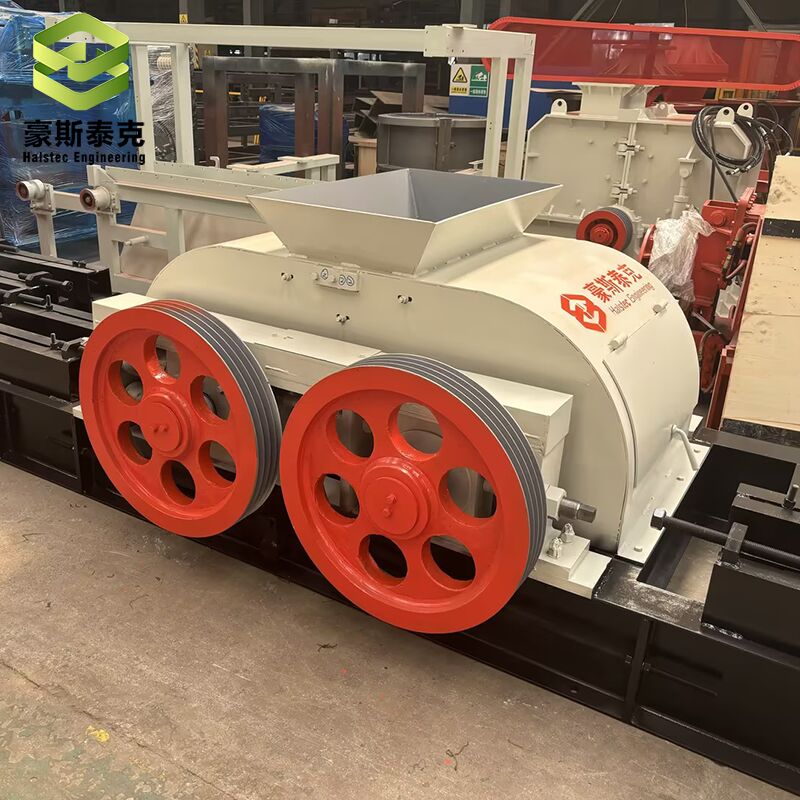

The Tooth-Roller Crusher is a core piece of equipment in the raw material preparation stage of brick factories. It is specifically designed to process brick-making raw materials including clay, shale, gangue, fly ash, and construction waste, reducing them to a particle size that meets molding requirements.Featuring excellent particle shape, low over-crushing rate, strong adaptability to material moisture, and easy maintenance, it serves as a key pre-processing device in brick-making production lines.
Features:
- Product Name: Tooth-Roller Crusher
- Material: High-quality Steel
- Feature: Easy Operation
- Capacity: ≥100 M³/hr
- Function: To Further Crush Raw Materials Into Particle Size Of ≤ 2mm
- Power: 30+30kw
Working Principle:
The Tooth-Roller Crusher adopts a working mode of synchronous low-speed rotation of double tooth rollers in opposite directions. Materials enter the gap between the two rollers from the upper feed inlet and are crushed through the combined action of three forces:
1.Extrusion: The gap between the two rollers generates directly crushing the materials
2.Shearing: The relative movement of the tooth surfaces applies shearing force to cut off fibrous or tough materials
3.Splitting: The tooth tips wedge into the material interior, creating stress concentration and causing the material to break along natural cracks
Safety Protection Mechanism: When encountering uncrushable hard objects (such as iron blocks), the driven roller can automatically retreat via spring or hydraulic devices to avoid equipment damage, and reset automatically after the hard objects are discharged.
Summary:
With its advantages of high efficiency, energy saving, excellent particle shape, and strong adaptability, the Tooth-Roller Crusher has become a standard equipment in modern brick-making production lines. Reasonable selection, standardized operation, and scientific maintenance can significantly improve raw material utilization rate, reduce production costs, and enhance the quality of brick products and the economic benefits of enterprises.
