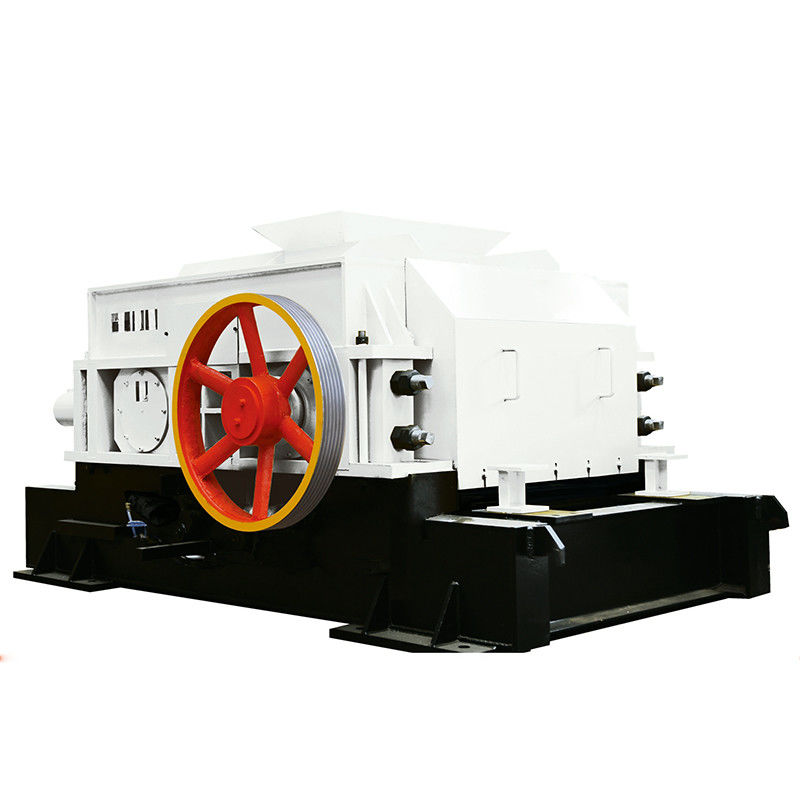

GS800 2mm Brick Crusher Clay Brick Making Machines With Two Motors

Roller Crusher Machine for Automatic Brick Plant, material can be 2mm

Roller Crusher GS800 with Two Motors 35M3/hr for Ceramic Brick Manufacture

It belongs to the fully automatic brick making machine, suitable for the tunnel kiln line. Which can ensure the fine processing of materials.

Features:

High chromium alloy rollers are used to ensure the service life
Coarse Crusher, Fine Roller Crusher and Hydraulic Crushers for different choice
Materials can be processed into 2mm around, ensure the quality of finished bricks
Lower power consumption can save daily maintenance cost
Roller surface no need welding, only grinding every certain time
Higher crushing capacity, ensure one day can get 150000 bricks
Easy to operate, and no maintenance cost

Application:

Roller Crushers can be divided into coarse crushers and fine crushers. Coarse crushers can crush the materials into 5mm around, Fine roller crushers can crush materials into 3mm around. GSY Roller Crushers can crush materials into 2mm or smaller. Good crushing results can ensure the quality of finished bricks, with smooth appearance of bricks.

Specifications:

Coarse Roller Crusher for Automatic Clay Brick Production Line

Tooth Roller Crusher for Brick Manufacturing Plant

Fine Roller Crusher for Automatic Brick Plant

Working Principle

The two rollers, of fully automatic solid block making machine, are driven by separate motors by V belts. One roller is fixed in a certain position by adjusting bolt, the other roller's bearing base is fixed by spring, then can move along the rail. Two rollers turn in the opposite direction, to crush materials into smaller size. Scrapers under rollers are equipped to clean adhesive materials, all action are conducted automatically, no human operation required.

Overseas Project Show

Automatic clay brick making machines are widely exported to the whole world, such as Uzbekistan, Russia, Indonesia, Vietnam, Myanmar, Malaysia, South Africa, etc. Below are the projects show for auto clay brick factory, share with you...

Finished Brick Samples

According to different usage purpose, finished bricks can be divided into out-wall decoration bricks, and inner-wall construction bricks.

Out-wall decoration bricks come with smooth surface and uniform color , and normally burning fuel is natural gas or coal powder, which is showered into the burning kiln by specific tube system. Out-wall decoration bricks also can be called as Face bricks.

Inner-wall construction bricks, normally featured with rough surface, but higher strength. Burning fuel for inner-wall construction bricks is coal, which can be added into the raw materials, or threw from the top of burning kiln.

Below is the sample for finished bricks, the size, shape and hole rate can be customized as the production requirements of clients.

Customers Show

With around 20 years experience of international trading, Halstec has set up more than 200 brick factories all over the world, such as Indonesia, Uzbekistan, India, Myanmar, Vietnam, South Africa, Zimbabwe, Bangladesh, etc. Below is the glimpse of our clients, hope can be your partner in very soon future.

General RFQ...

Q1: What can the machines be used for ?

These brick making machines can be used to produce fired red clay bricks, solid bricks, hollow bricks, perforated bricks, fired clay bricks, etc.

If you want to set up one brick factory, make bricks and sell bricks, then you will need these machines.

Q2: How much the machines or whole production line?

Price could be huge difference according to different production requirements. For example, one day make 100000 bricks, one day 200000 bricks, or one day 300000 bricks, would need different model, different capacity machines, also kilns. So if wanna to get accurate reference price, then better consider what kind of factory you want to own first.

You can get reference invest idea as: 200000USD, 500000USD, 1000000USD... etc

Q3: What will be needed for one brick factory?

Actually, when you have an idea to set up brick factory, you have to think about the land, electricity, workshop, brick machines, electrical equipment, brick dryer, brick oven/kiln, etc.

Q4: What should be consider before setup one new automatic brick plant?

-Better to make some investigation for local market requirements, find out which capacity is good to run, for example, one day 100000 bricks, one day 200000 bricks, or one day 300000 bricks??

-Then confirm the brick type and size, and related daily quantity.

- Get the initiatory design for whole line, which can be reference for land purchase.

-Confirm the raw materials condition, better make a material test before purchase land.

-Burn bricks will need burning fuel, so coal powder or natural gas, which one is available.

-Combine the investment to confirm final design for whole brick manufacturing plant

-Start purchase and construction work...
